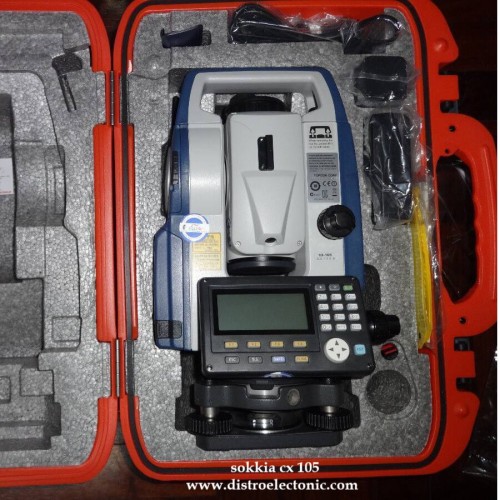

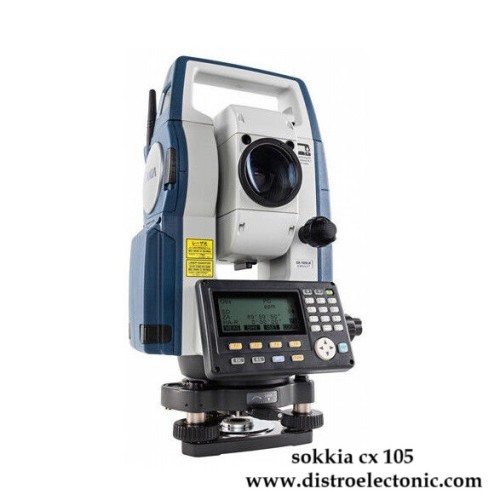

New SOKKIA CX-105 Total station
Angle Measurement 1", 2", 3", 5", 7"
Distance Measurement (Single Prism) 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)*
Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.
Distance Measurement (Reflectorless) 0.3 to 500m (1.0 to 1,640ft.)*
Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation.
Accuracy (Single Prism) (2 + 2ppm x D) mm
Accuracy (Reflectorless) (3 + 2ppm x D) mm*
Measuring range:0.3 to 200m
Measuring Time Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
Tilt Compensation Dual Axis, Compensation Range +/- 6'
Wireless Communication Bluetooth Class 1 - 300m (980ft)
No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain.
Display / Keyboard Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight
Data storage Approx. 10,000 points*
Optional USB flash memory supported for additional storage
Weight (battery & tribrach) Approx. 5.6kg (12.3 lb.)
Operating Time Approx. 36 hours (single distance measurement every 30 seconds)
SOKKIA CX-105 Total station - Sale
- Product Code: CX-105
- Availability: In Stock
-
$2,250.74
- Ex Tax: $2,250.74
