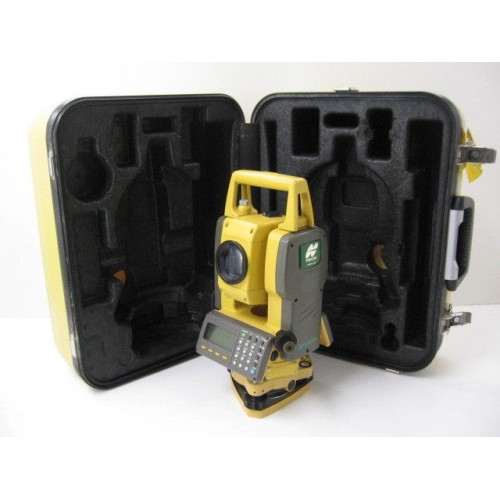

New Topcon GTS-105N 5 Total station

Magnification: 30x

Image: Erect

Minimum focusing distance: 1.3Meter

1 Prism:  6500 ft, 2000 meters

3 Prism:    8800 ft, 2700 meters

Telescope length: 150 Millimeters

Measurement time: 1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A

Angle Method  : Absolute Reading

Angle Detection: 2 horizontal, 1 vertical

Angle Minimum reading: 1"/5" or 1/5 mgon

Tilt type: Single Axis

Tilt Method: Liquid surface reflective profile sensor reading type

Tilt Compensating Range: +/-3'

Tilt Correction Unit: 1 arc sec, N/A

Display: 2 screen, dot matrix graphic LCD display

Approx. Battery Life: 9 hrs including distance measurement, 40 hrs Angle measurement
