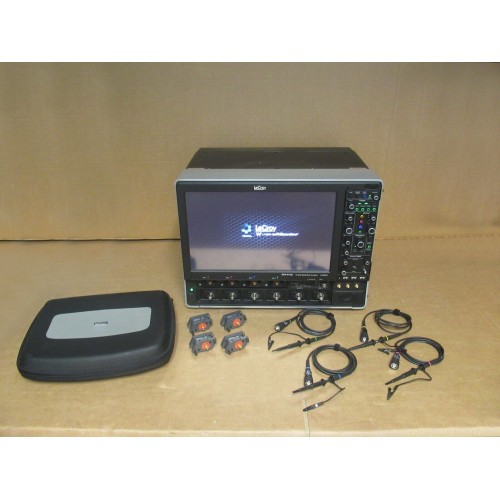

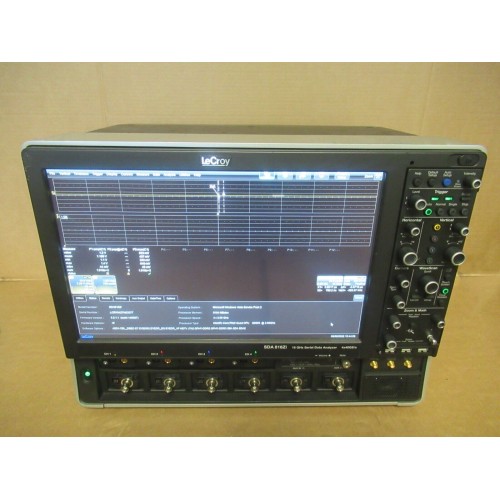

LeCroy WaveMaster SDA816Zi Serial Data Analyzer -Sale

Environmental

Temperature (Operating): +5 °C to +40 °C

Temperature (Non-Operating):-20 °C to +60 °C

Humidity (Operating): 5% to 80% relative humidity (non-condensing) up to +31 °C.

Altitude (Non-Operating) :Up to 40,000 ft. (12,192 m)

Random Vibration (Operating):0.5 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes

Random Vibration (Non-Operating):2.4 grms 5 Hz to 500 Hz, 15 minutes in each of three orthogonal axes

Functional Shock:20 g peak, half sine, 11 ms pulse, 3 shocks (positive and negative) in each of three orthogonal axes, 18 shocks total

Size and Weight :

Dimensions (HWD): 14"H x 18.4"W x 16"D (355 x 467 x 406 mm)

Weight :51.5 lbs. (23.4 kg)

Shipping Weight : 70.0 lbs. (31.8 kg)
