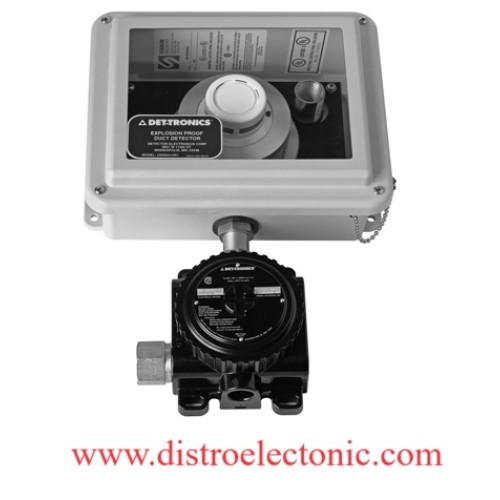

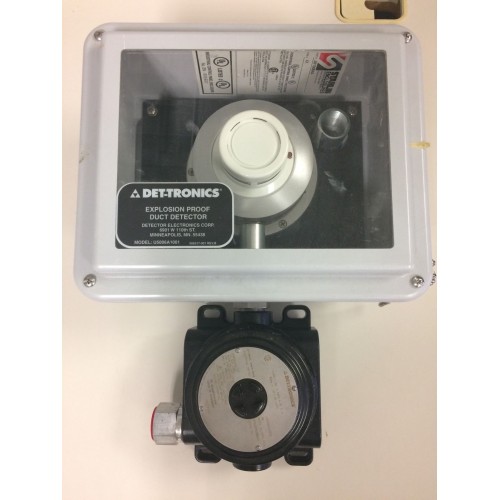

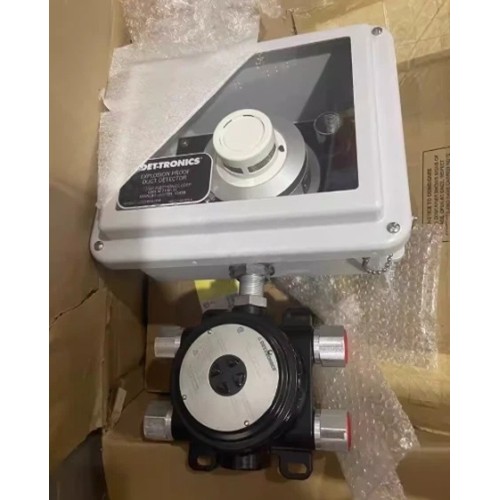

Det-Tronics U5006 Air Duct Smoke Detector

OPERATING VOLTAGE 20 to 28 vdc filtered supply, with less than 1.4 vpp

at 60 to 120 Hz.

OPERATING CURRENT : U5005 Standby: 10 milliamperes.

Alarm: 35 milliamperes.

U5006 Standby: 10 milliamperes.

Alarm: 50 milliamperes.

TEMPERATURE RANGE Operating: –13°F to +140°F (–25°C to +60°C).

Storage: –67°F to +185°F (–55°C to +85°C).

HUMIDITY RANGE 0 to 90% RH non-condensing.

(U5006 ONLY)

AIR VELOCITY RANGE 600 to 4000 ft/min.

(U5006 ONLY)

SENSITIVITY RANGE Meets ANSI/UL268A visible smoke obscuration

(U5006) limits: Grey smoke: 7.0% / ft maximum,

0.5% / ft minimum

Black smoke: 10.0% / ft maximum,

0.5% / ft minimum.

SENSITIVITY RANGE 2.3% obscuration.

(U5005)

ALARM AND SUPER- 1.0 ampere at 30 vdc, SPST.

VISORY RELAY CONTACT

RATING

AUXILIARY ALARM RELAY 2.0 amperes at 30 vdc, Form C, SPDT.

CONTACT RATING

FIBERGLASS NEMA 4X. Cover is clear polycarbonate with

ENCLOSURE closed cell neoprene gasket sup

WEIGHT U5005: 2 pounds (0.91 kilogram).

U5006: 13 pounds (5.9 kilograms).

2 year warranty

Please contact us for more details
