Leica TCR1203 R300 3" TOTAL STATION

Magnification: 30X
Image: Erect
Minimum focusing distance: 1.3m/4.3’
Angle accuracy: 3”/1 mgon
Angle minimum display reading: 1”/5”
Angle reading system: Dual-side reading
Angle units: Switchable between meter or feet, angle degrees or gon
Distance measurement: 1 Prism: 5,250’, 3Prism: 6,560’, Compact prism CP01: 1,970’, Mini pole prism: OR1PA 980’
Distance measurement to target sheet RS90N-K: 200’
Distance measurement to target sheet RS50N-K: 160’
Distance measurement to target sheet RS10N-K: 70’
Distance measurement precision: ±(3mm+2pmm) rapid measurement, prism mode
Distance measuring time: 1.4s+every 0.3s tracking mode
Distance measuring time: 2.3s+every 0.8s coarse mode
Distance measuring time: 2.4s+every 1.6s fine mode
Distance minimum display: 1mm/0.003ft
Display: Single
Data input/output: RS-232C compatible, asynchronous serial
Internal memory: Surveying data + coordinates data total 10,000 points
Compensator: Liquid dual axis
Compensating range/Accuracy: ±3’/0.3”
Optical plummet: Erect 3X
Weight: 5.1kg, 11lbs including tribrach and battery

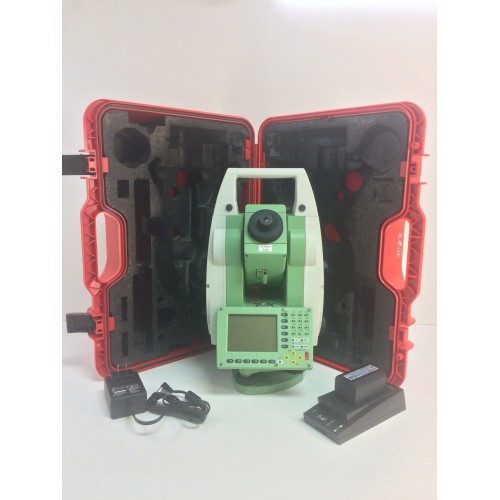

Leica TCR1203R300 3" Total Station

Leica Tribrach

Leica Battery

Battery Charger

Original carrying case

Owner’s Manual
